Hazcam Jetson Nano/NX Carrier PCB

  • Sale
  • Regular price $149.00
Shipping calculated at checkout.

The Hazcam Jetson Nano/NX Carrier PCB is a high-performance, interface rich NVIDIA Jetson nano / Xavier NX compatible carrier board, providing hdmi 2.0, Gigabit Ethernet, 2 x USB3.0, 1 x USB 2.0 (w / OTG function), 1 x  m.2 e-key wifi / BT, 1 x m.2 m-key m solid-state drive, 1 x CSI camera, 2 x RS232, 1 x SD card, 1 x can, PIO, 2 x I2C, I2S fans and other rich peripheral interfaces representing the smallest carrier board size for the Nvidia Jetson Nano and Xavier NX platforms.


The Hazcam Custom Jetson Carrier PCB size




Jetson Module Heatsink Height  + 24mm




The Jetson Carrier PCB is a Custom PCB Design about half the size of the Nvidia Jetson Carrier PCB.

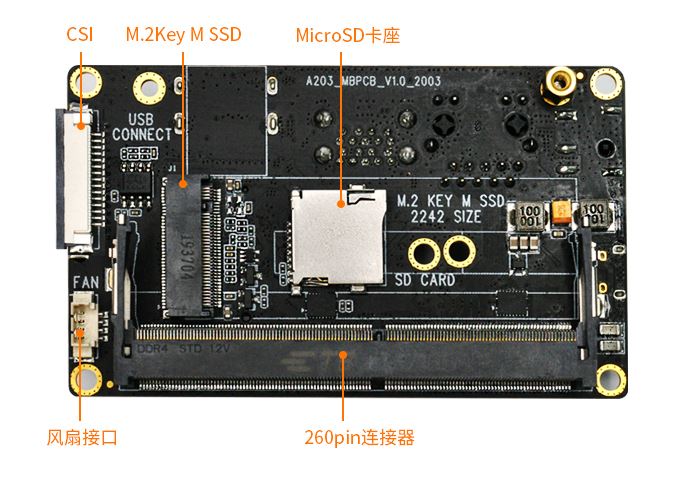

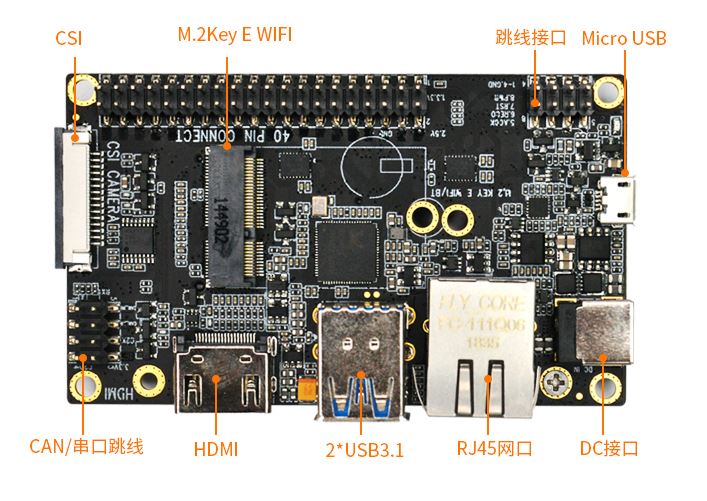

Carrier board details:

  • Overall Size 87mm x 52mm
  • CAN Bus
  • HDMI
  • Gigabit Ethernet (10/100/1000M)
  • 2x USB 3.0 Type A (Integrated USB 2.0)
  • USB 2.0 OTG Micro-AB
  • M.2 KEY M NVMe SSD
  • Serial  RS-232
  • M.2 KEY E PCIE 2242 SIZE
  • I2S 1x I2S(3.3V Level)_
  • 2x I2C Link (+3.3V I/O)
  • 6 additional GPIO
  • 40 Pin GPIO Header
  • Power Requirements +7V to +19V DC Input @ 3A
  • Operating Temperature -25° to +65°

The Hazcam Jetson Nano/NX Carrier PCB is an ALWAYS ON design which means it will always power ON when power is applied.
