The Hazcam Jetson Mini represents the smallest possible waterproof fanless aluminium enclosure size for the Nvidia Jetson Nano and Xavier NX platforms.
Due to World Wide Components Shortages, please email us at sales at hazcam dot io for latest pricing and lead times. We can also provide quantity discounts or custom designs to suit your specific requirements.

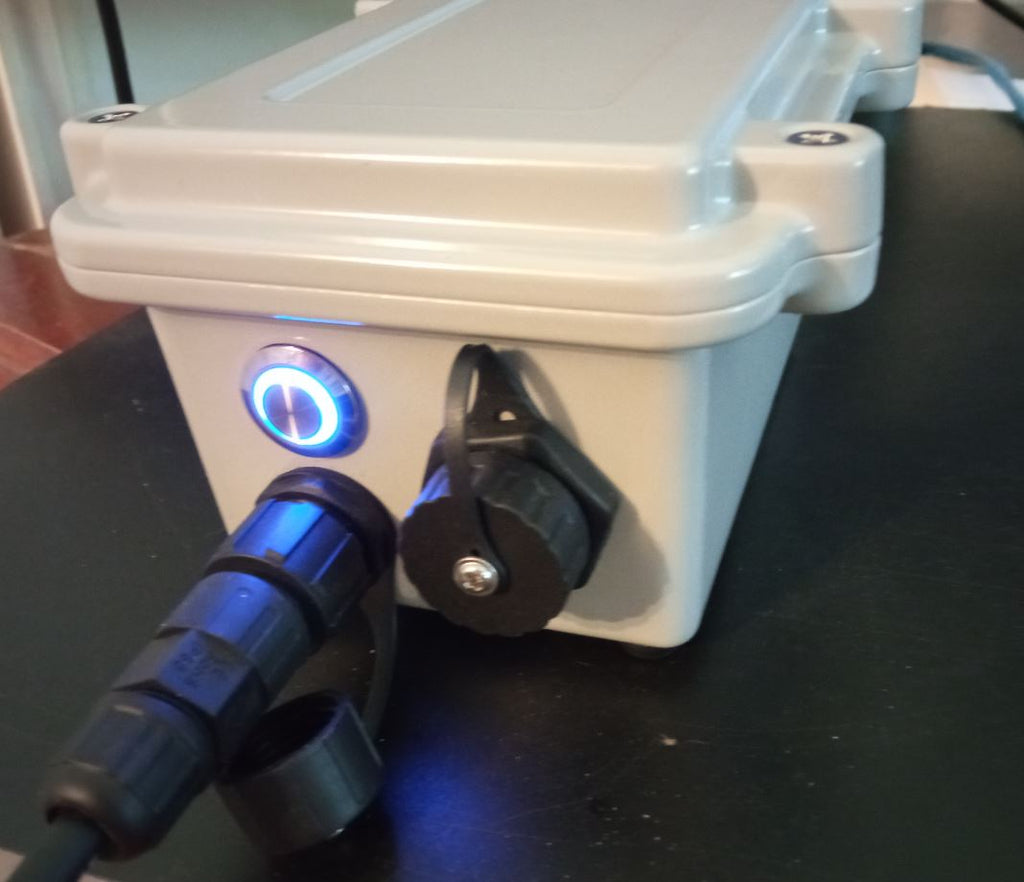

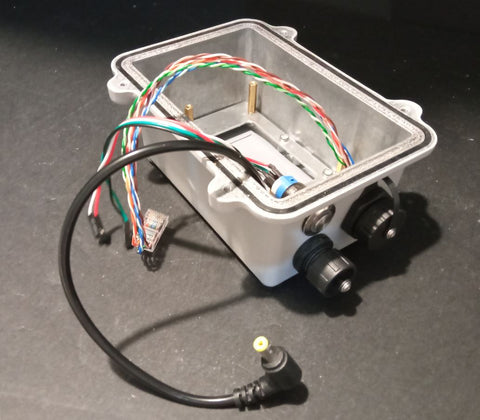

The enclosure is EMC Shielded, waterproof and fanless, powder coated light gray and includes mounting brackets for wall or flat surface. Pole mount adaptor kits are also available.
The enclosure size
The Hazcam Custom Jetson Carrier PCB size
Jetson Module Heatsink Height + 24mm
The Jetson Carrier PCB is a Custom PCB Design about half the size of the Nvidia Jetson Carrier PCB.
Carrier board details:
- Overall Size 87mm x 52mm
- Gigabit Ethernet (10/100/1000M)
- 2x USB 3.0 Type A (Integrated USB 2.0)
- USB 2.0 OTG Micro-AB
- M.2 KEY M NVMe SSD
- Serial RS-232
- CSI CAMERA
- M.2 KEY E PCIE 2242 SIZE
- I2S 1x I2S(3.3V Level)_
- 2x I2C Link (+3.3V I/O)
- 6x GPIO
- Power Requirements +7V to +19V DC Input @ 3A
- Operating Temperature -25° to +65°
The Hazcam Carrier PCB is an ALWAYS ON design which means it will always power ON when power is applied. There is no way to turn power ON or OFF via the Control Header as this function has been disabled. Therefore a physical power cycle is required if the Jetson is Shutdown via software.
Thermal performance has been tested with JTOP and the maximum steady state temperature under full CPU and GPU load is 50C +/- 10% from 25C ambient

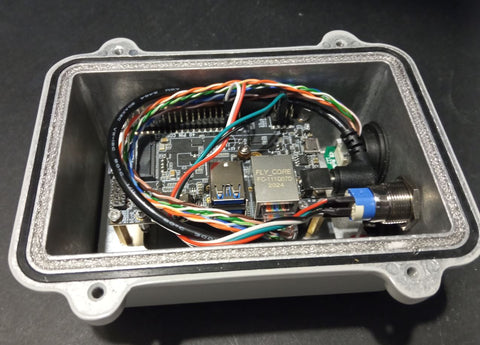

This product includes a Hazcam Custom Jetson Carrier PCB that is half the size of the Nvidia Jetson Carrier. When installing your Jetson, please swap the Jetson Module only, and insert into the Hazcam Custom Jetson Carrier PCB card slot.
