Hazcam AGX PoE Switch

  • Sale
  • Regular price $0.00
Shipping calculated at checkout.

Hazcam AGX PoE Switch is an Industrial Grade Stainless Steel Lockable Enclosure for Pole or Wall mounting in harsh Industrial environments.

The Hazcam AGX PoE Switch is powered by PoE using PoE++ at 120W. The incoming power is applied to the Jetson AGX (12VDC @ 30W) and a 4 port PoE Switch (48-55VDC @ 60W) delivering 4 PoE 802.3af output ports at 15W per port.

The Hazcam AGX PoE Switch can also be powered using an AC Plugpack at 48VDC, 2.5A, 120W in environments where AC Power is available.

The Hazcam AGX PoE Switch is IP65 environmental rating with waterproof connectors and gasket sealed lockable door.

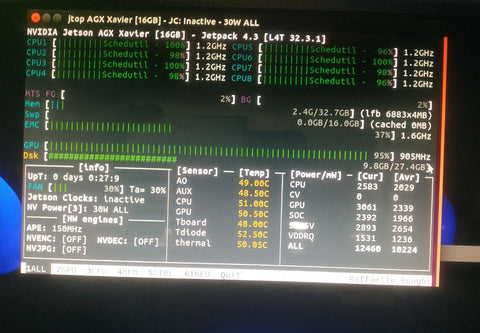

Thermal testing on the Hazcam AGX PoE Switch using JTOP and maximum power on AGX CPU and GPU and maximum 15W per PoE port loads reaches steady state temperature of 50 degrees Celsius +/- 10%.

An adjustable pole mount allows for solid reliable pole mounting with 2 degrees of adjustment.

Included items :

  • 1 x Xavier AGX Dev Kit per enclosure (pre-flashed)
  • 4 Port PoE Switch
  • 4 x PoE LAN Ports for Network Cameras (4 x RJ45)
  • 1 x WAN port (1 x RJ45)
  • 1 x DC Port
  • Auto-boot configurable, auto-power on default
  • IP65/IP67 Fanless Enclosure (Customised)
  • IP67 connectors cable glands

48V@120W DC plugpack and PoE Injector, sold separately

Due to World Wide Components Shortages, please email us at sales at hazcam dot io for latest pricing and lead times. We can also provide quantity discounts or custom designs to suit your specific requirements.
